EN 50306 Thin Wall Instrumentation & Control Cable
FIREROL FRL-TW-05SU

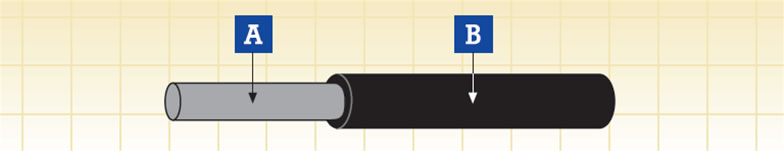

A.Conductor B.Insulation
Application
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construction
Conductor
Tinned annealed copper wires as defined in EN 50306-2
Insulation
LSZH special compound
Electrical & Mechanical Properties
Nominal Voltage | 300/500 V |
Maximum Conductor Temperature | +120/+150 deg (fixed installation) |
Minimum Permissible Ambient Temperature | -25/-40 deg (fixed installation) |
Bending Radius | 3 x Overall Diameter |
Chemical & Environmental Properties
EN 60684-2 | No fluorine |
EN 50305; EN 60811-2-1 | Resistance to oil & fuel |
EN 50305 | Resistance to ozone |
Fire Performance for rolling stock application
EN 50306-2 | Hazard levels HL1, HL2, HL3 |
DIN 5510-2 | Protection level 1/2/3/4 |
BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
NF F 16-101 | F0 |
EN45545-2 |
R15 Interior/ R16 Exterior HL1, HL2, HL3 |
Fire Performance in general
EN 50265-2-1; IEC 60332-1; BS 4066-1 | Vertical flame propogation for a single insulated wire or cable |
EN 50266-2-4 + EN 50305; IEC 60332-3C; | Fire propagation of bunched wires and cables; |
VDE 0472 Teil 804; BS 4066-3; NFC 32070 | |
EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 | Smoke density |
EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 | Halogen Free |
EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 | Corrosivity of gases (Acidity & Conductivity) |
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 | Toxicity index |
NFF 16101; NFF 63808; BS6853 | Smoke index |
EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
FRL-TW-05SU 300/500 V
NOMINAL CROSS SECTIONAL AREA | NUMBER X NOMINAL DIAMETER OF WIRE | DIAMETER | THICKNESS OF INSULATION | OVERALL DIAMETER | WEIGHT | RESISTANCE OF CONDUCTOR AT 20°C | ||
---|---|---|---|---|---|---|---|---|
mm2 | mm | min | max | min | min | max | max | |
mm | mm | mm | mm | mm | kg/km | Ω/km | ||
0.5 | 19 x 0.18 | 0.80 | 0.95 | 0.18 | 1.15 | 1.45 | 7 | 40.1 |
0.75 | 37 x 0.16(a) | 1.00 | 1.15 | 0.18 | 1.35 | 1.65 | 8 | 26.7 |
1.0 | 37 x 0.18(a) | 1.10 | 1.30 | 0.18 | 1.45 | 1.80 | 10 | 20.0 |
1.5 | 37 x 0.23(a) | 1.45 | 1.65 | 0.22 | 1.95 | 2.30 | 20 | 13.7 |
2.5 | 37 x 0.30(a) | 1.85 | 2.15 | 0.28 | 2.50 | 2.85 | 25 | 8.21 |
-This cable may be supplied in 19 strand conductor providing all product performance requirements in the specification are met
